Large MRI phantom for comprehensive evaluation of critical imaging parameters of magnetic resonance imaging (MRI) in a time efficient manner. The phantom can be used for the measurement of absolute values for calibration purposes. However, its design is optimized for time efficient daily quality assurance too.
It can be used to measure:
geometric distortion
spatial resolution
slice thickness and position
interslice Gap
image bandwidth
low contrast detectability
image uniformity
signal-to-noise ratio (SNR)
physical and electronic slice offset
point of reference
bandwidth: water-fat shift
Technical data:
outside cylinder diameter: 203 mm (8'')
outside cylinder height: 165 mm
inside cylinder diameter: 190 mm (7,5'')
inside cylinder height: 150 mm
the phantom is filled with 10 millimolar (mmol) nickel chloride solution containing 0.45% by weight sodium chloride
the outside of each phantom has the words “NOSE” and “CHIN” etched into it as an aid to orienting the phantom for scanning, as if it were a head
resolution insert:
three matrices of holes, diameters: 0.9, 1.0 and 1.1 mm
spaces between the holes are equal to hole diameters
two small containers with water and fat for water-fat shift evaluation
slice thickness insert:
1 mm wide counter-descending slits on both sides
slits form two ramps descending at 1:10
geometric distortion insert:
3x3 holes array, 60 mm spacing
1.5 mm diameter
10 mm thick
low contrast insert:
partial volume contribution of these sheets and filling solution produce contrasts: 1.4, 2.5, 3.6, and 5.1%
each disc contains 10 groups of 3 holes arranged in spokes
each spoke has the same diameter
diameters range from 7.0 to 1.5 mm
slice position accuracy:
one set of paired 45° wedges. The distance between the intersection of the wedges is 100 mm
product included:

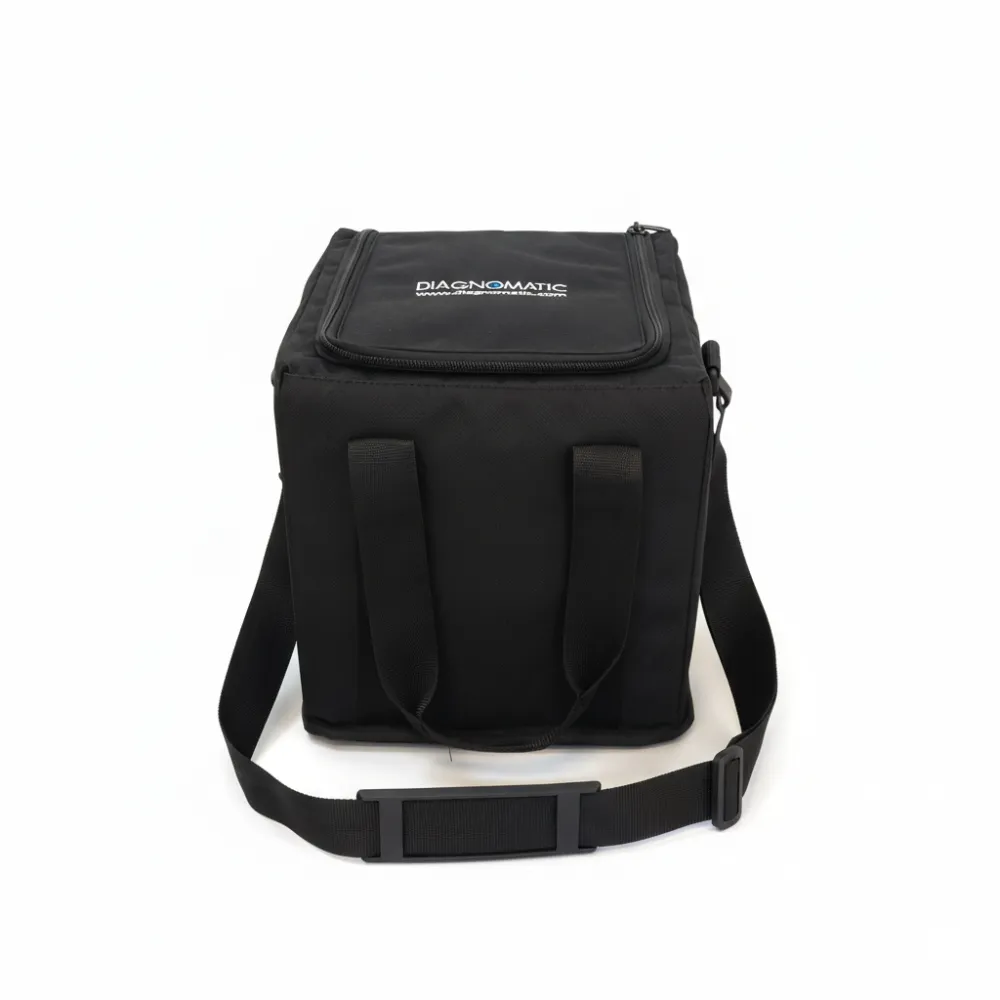

hard-sided carrying case (MR unsafe) (09-102)
optional 2-axis spirit level (09-104-1)
Product features:
complies with: - Large and Medium Phantom Test Guidance for the MRI Accreditation Program, 2022 (ACR) - MRI Quality Control Manual, 2015 (ACR) - AAPM Rep. 100 “Acceptance & Quality Assurance procedures for MRI facilities”, 2010
ACR Accredited
CE certified
the manual provides detailed guidelines for carrying out each test, results assessment and registration
