Nuclear Medicine

Nuclear Medicine

Phantoms in this section support QA procedures in nuclear medicine, including planar imaging, SPECT, and PET. They are designed to evaluate performance parameters such as uniformity, spatial resolution, sensitivity, and quantification accuracy.

      — Marked models are compatible with Diagnomatic for automated test analysis and reporting.
A cylindrical vessel made of transparent PMMA with a top lid attached with thumbscrews, 6 groups of white rods with different dimensions and 6 transparent spheres with different dimensions.
Pro-NM Performance
The phantom for NM and PET systems performance evaluation (collimator, artifacts, calibration, reconstruction parameters).
Acrylic transparent cylindrical tank.

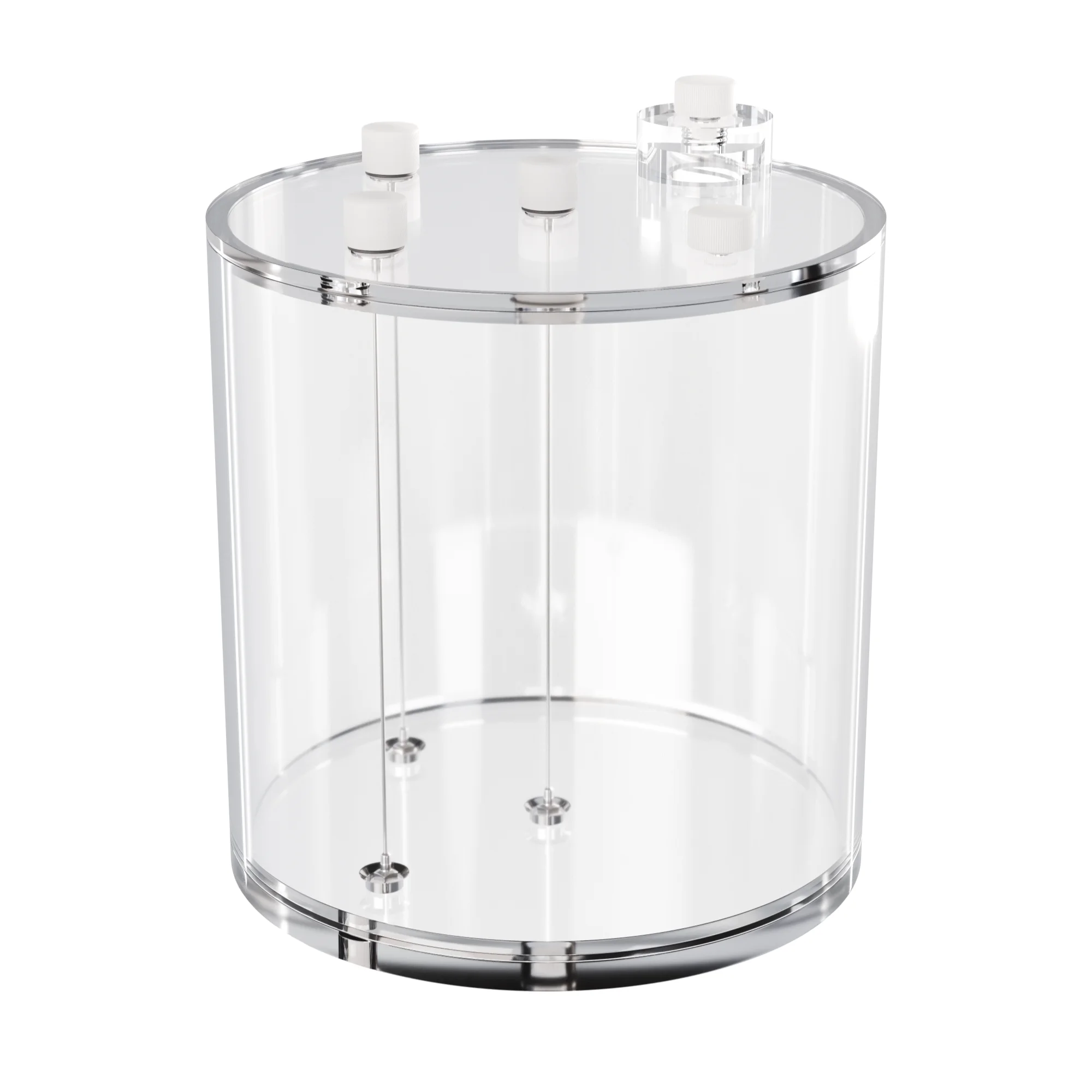

Pro-NM NEMA Cylinder Water Phantom
Cylindrical water phantom with a dedicated infusion spot. The cylinder can be used to examine reconstructed images (tomography slices) for uniformity, artifacts, activity concentration, and similar purposes.
A cylindrical vessel made of transparent PMMA with a top lid attached with thumbscrews, 6 groups of white rods with different dimensions and 6 transparent spheres with different dimensions.
Pro-NM Performance HD
The phantom for high resolution NM and PET systems performance evaluation (collimator, artifacts, calibration, reconstruction parameters).
A cylindrical vessel made of transparent PMMA with two thumbscrews on top to fill with fluid, and 6 groups of white rods with different dimensions.
Pro-NM Performance MINI
The phantom for performance evaluation of small animal systems or ultra-high resolution ECT systems.
A cylindrical vessel made of transparent PMMA with a top lid attached with thumbscrews, 6 groups of white rods with different dimensions and 6 transparent spheres with different dimensions.
Pro-NM Performance SMALL
The phantom for small FOV NM and PET systems performance evaluation
A cylindrical vessel made of transparent PMMA with a top lid attached with thumbscrews, containing 3 fillable rods and a stack of transparent disks.
Pro-NM Performance ECT
The phantom for NM systems performance evaluation: routine quality assurance tests, as well as extensive acceptance tests
A module made of two transparent disks connected together with rods.
Pro-NM Linear Source Module
This module can be used as a standalone in air or in water if mounted in the Pro-NM Performance cylinder.
Semi-oval transparent PMMA vessel with a transparent tube in the middle filled with white grain, and 6 transparent spheres with descending diameters, attached to the top lid with rods, arranged in the circle.
Pro-NM NEMA NU1
SPECT dedicated phantom for simulating whole body imaging with hot/cold lesions, lung region, and uniform background. Designed per IEC and modified by NEMA standards.
Semi-oval transparent PMMA vessel with a transparent tube in the middle filled with white grain, and 6 transparent spheres with descending diameters, attached to the top lid with rods, arranged in the circle.
Pro-NM NEMA NU2
The phantom for evaluating performance of positron emission tomographs (PET). Recommended for use in the evaluation of reconstructed image quality in whole body PET imaging.
A rectangular, flat white object with a printed top.
Pro-NM Resolution
The bar phantom for determination of resolution of Scintillation Cameras.
A rectangular, flat white object with a printed top.
Pro-NM ResL
Pro-NM ResL for determination of resolution of Scintillation Cameras.
A phantom with three glass capillaries on aluminium plate.
Pro-NM NEMA NU1 RSR
Simple phantom with three thin-walled glass capillaries (~1 mm) on a holding plate – ideal for spatial resolution and alignment (COR) tests per NEMA NU-1, crucial for SPECT systems.
A rectangular, flat white object with a printed top.
Pro-NM Slits
Slits phantom for Intrinsic Spatial Resolution evaluation (Quantitative technique) according to NEMA Standards Publication NU 1-2012.
A transparent rectangular, flat device resembling a suitcase with four carrying handles.
Pro-NM AutoFlood
The Pro-NM AutoFlood is dedicated for weekly inhomogeneity and sensitivity control and acquisition of correction matrices, according to revised Guideline on Radiation Protection in Medicine.
A transparent PMMA rectangular board with a cavity inside that can be filled with water.
Pro-NM FloodRECT
Flood phantoms provide a simple and efficient means of obtaining optimum camera performance with respect to uniformity of response over the entire crystal area.
A transparent PMMA square board with a round cavity inside that can be filled with water.
Pro-NM FloodROUND
Flood phantoms provide a simple and efficient means of obtaining optimum camera performance with respect to uniformity of response over the entire crystal area.
A thin transparent rectangular plate with 5 rows of 6 small holes.
Pro-NM Distortion
A simple phantom the quality assurance of geometric distortion and spatial resolution of gamma cameras.
A transparent PMMA block with two deep holes,
Pro-NM DualSource
This scatter phantom simulates in-vivo forward and backscatter characteristics of 99mTc gamma rays for the extrinsic measurement of a scintillation camera’s deadtime.
Long white cylindrical obcject.
Pro-NM PETscatter
The PET scatter phantom is an acceptance testing tool used to determine the imaging systems relative sensitivity to scatter radiation.
A metal object similar to a telescopic antenna with a white header.
Pro-NM PETsensi
The PET sensitivity phantom is used to measure the sensitivity or ability of positron emission tomographs to detect positrons.
A chair-shaped object made of two parallel transparent flat elements connected with a few rods and nested on a rectangular transparent base.
Pro-NM NEMA NU 2 Resolution
A phantom for evaluation of spatial resolution of positron emission tomographs (PET).
A transparent PMMA cylinder on a stand with four rods on different angles inside, and two fill holes on the side sealed with corks.
Pro-NM MultiAlign
The Phantom designed for a simple and cost effective verification of image alignment and distortion in hybrid scanning systems like PET/CT or NM/CT.
A cylindrical vessel made of transparent PMMA with a lid screwed with thumbscrews, inside three cylindrical objects for whole hight: two transparent and one white made plus three white rods.
Pro-NM NEMA 94
Main application of Pro-NM NEMA 94 is PET acceptance testing with NEMA standard. Evaluation of count rate, uniformity, scatter fraction, attenuation compensation, and scatter compensation of ECT systems.
rectangular inclined base made of PMMA with two rubber rollers and an electric motor
Pro-NM AutoMixer
Automatic table mixer for mixing radioactive solutions in nuclear medicine cylindrical volume phantoms (e.g., PET, SPECT). Automatic mixing makes the radio-nuclide solution more homogeneous, reduces time spent on test preparation, and reduces radiation exposure for personnel.
