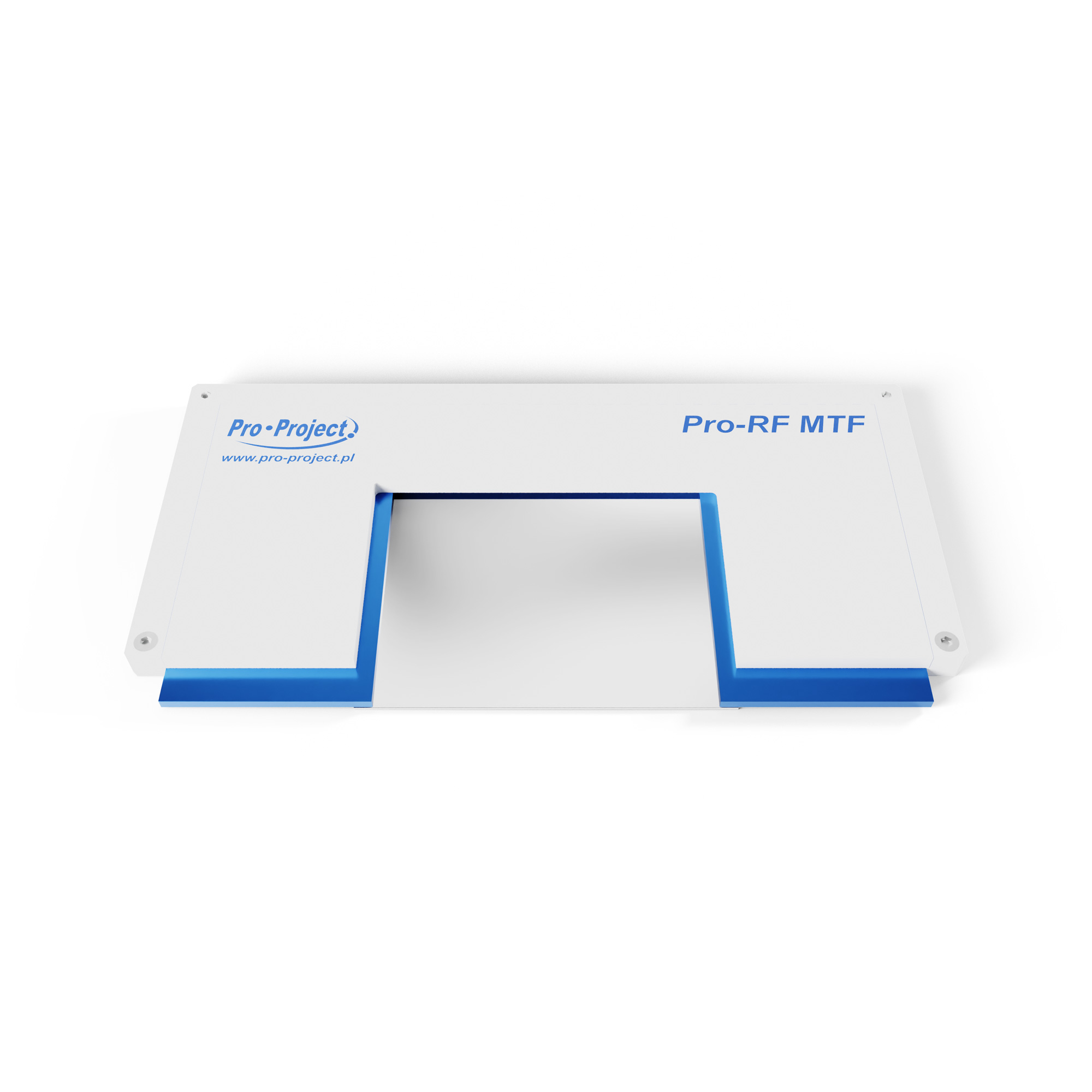

Pro-RF MTF

The edge test device according to IEC 62220-1 for determination of Modulation Transfer Function that consists ofa tungsten plate fixed on a lead plate.

‍

Technical data (can be modified to customer specifications):

• overall dimensions: 220 x 110 x 13 mm
• tungsten plate dimensions: 100 x 80 x 1 mm
• lead plate dimensions: 200 x 100 x 3 mm
• tungsten edge scragginess less than 5 µm
• PMMA cover

‍

Product features:

• complies with:
  – IEC 62220-1
  – DIN EN 62220-1
  – IEC 62220-1-1:2015

• CE certified
• the manual provides detailed guidelines for carrying out each test, results assessment and registration
