Pro-RT ED CBCT
07-602
07-602A
No items found.
In CBCT imaging, CT numbers are affected by scatter and system-specific acquisition conditions, so calibration must be performed per system. Diagnomatic developed the Pro-RT ED CBCT phantom for this system-specific calibration and to establish the correlation between CT data and electron density used in radiotherapy treatment planning, where tissue heterogeneity must be accounted for.
The phantom comprises a large body section with a removable head module, extending coverage along the longitudinal (z) axis so evaluation spans a clinically relevant scan volume. Fifteen tissue-equivalent electron density plugs (Ø 30 mm × 165 mm), including two fillable water vials, can be positioned at 16 locations across the scan field. Optional titanium, stainless-steel and aluminium cores are also available.
Available materials: Lung (inhale/exhale), Adipose tissue, Breast (50% gland / 50% adipose tissue), Pro-Water, Brain (gray, white and medium matter), Liver, Calcium 50 mg/mL, Bone 200, Calcium 300 mg/mL, Bone 1250 and a water sample.
Technical data (can be modified to customer specifications):
Two configurations:
07-602 head insert, and body segmented into 3 × 55 mm sections
- Electron Density Head Insert: Ø 200 mm x 165 mm (3x 55 mm)
- Electron Density Body without Head Insert: 300 mm x 400 mm x 165 mm (3x 55 mm)
- list of electron density plugs Ø 30 mm x 165 mm:
Lung (inhale), Lung (exhale), Adipose tissue, Breast (50% gland / 50% adipose tissue), Pro water, Brain (gray matter), Brain (white matter), Brain (medium matter), Liver, Calcium 50 mg/mL, Bone 200, Calcium 300 mg/mL, Bone 1250, Water sample and optional titanium, steel or aluminum core - stand
- carrying case

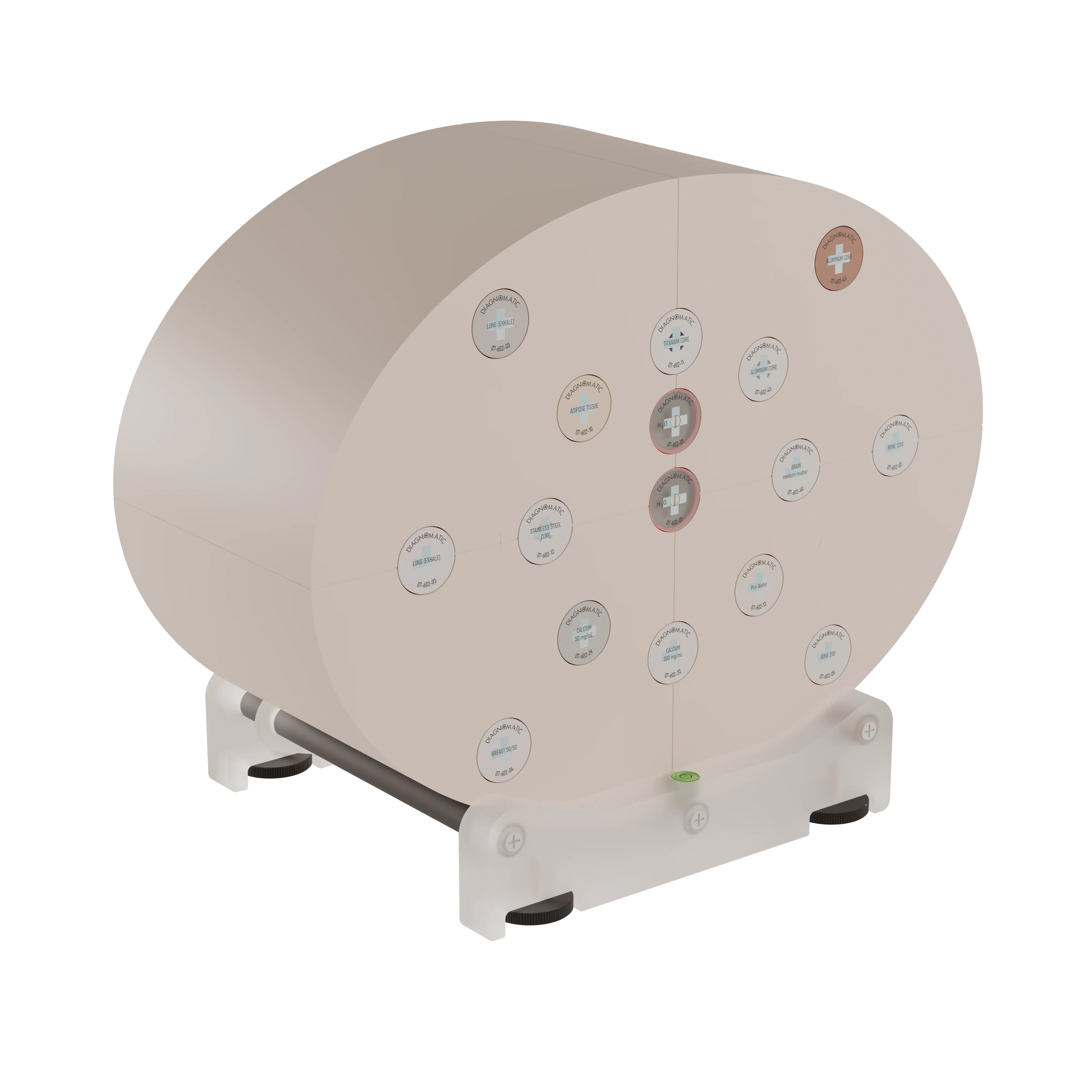

07-602A solid 165 mm insert and body
- Electron Density Head Insert: Ø 200 mm x 165 mm
- Electron Density Body without Head Insert: 300 mm x 400 mm x 165 mm
- list of electron density plugs Ø 30 mm x 165 mm:
Lung (inhale), Lung (exhale), Adipose tissue, Breast (50% gland / 50% adipose tissue), Pro water, Brain (gray matter), Brain (white matter), Brain (medium matter), Liver, Calcium 50 mg/mL, Bone 200, Calcium 300 mg/mL, Bone 1250, Water sample and optional titanium, steel or aluminum core - stand
- carrying case
The values shown in the table are example values only. Each product is supplied with its own certificate containing the actual product-specific data.
Product features:
- Complies with:
- IEC 61223-3-5
- IEC 61223-2-6
- AAPM guidelines
- ACR guidelines
- 21CFR 1020.33 specifications - CE marked
- The manual provides detailed guidelines for carrying out each test, results assessment and registration
